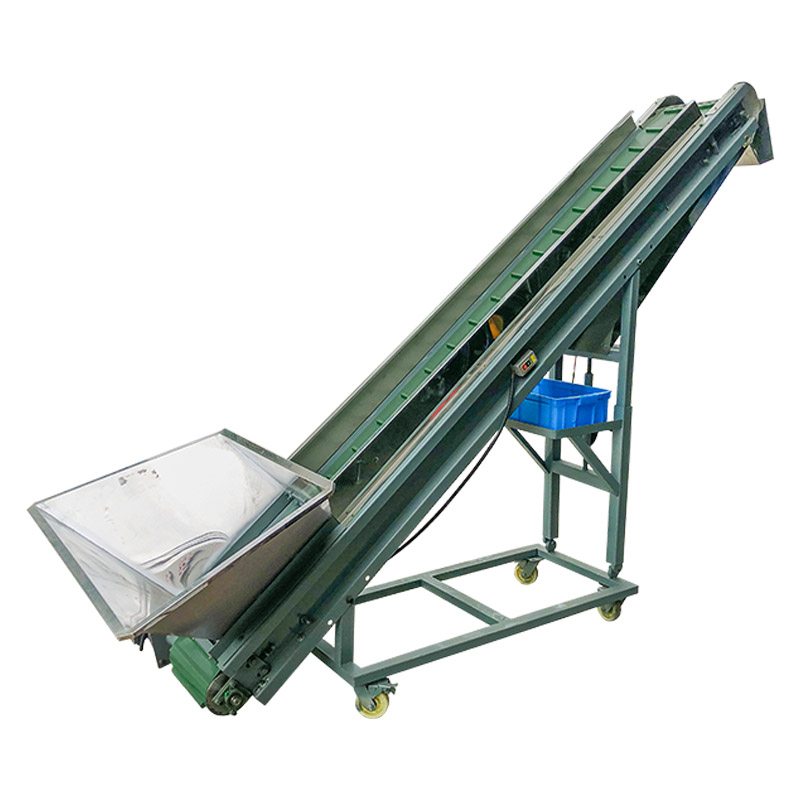

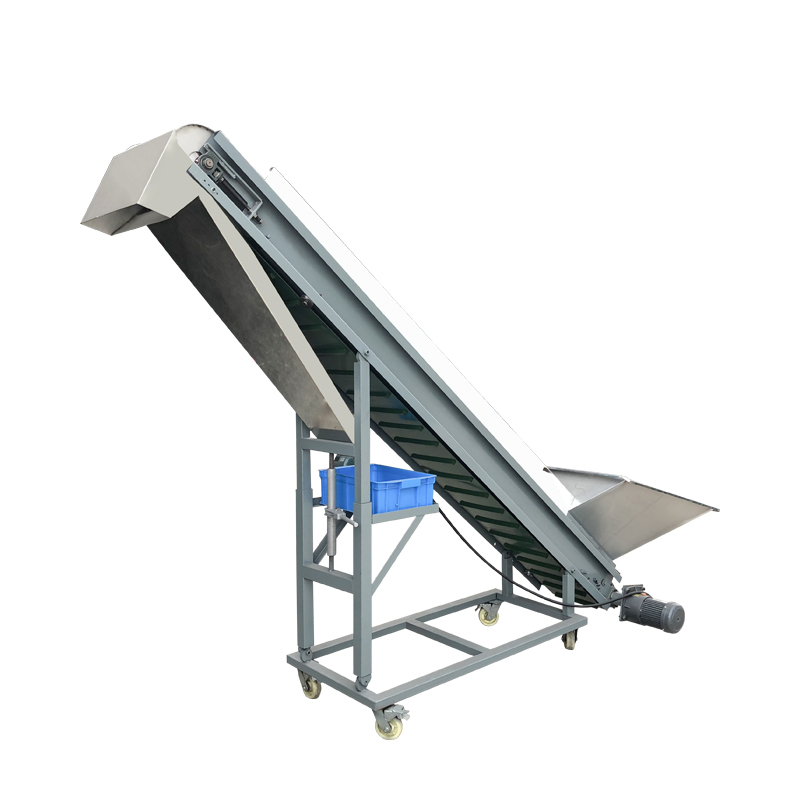

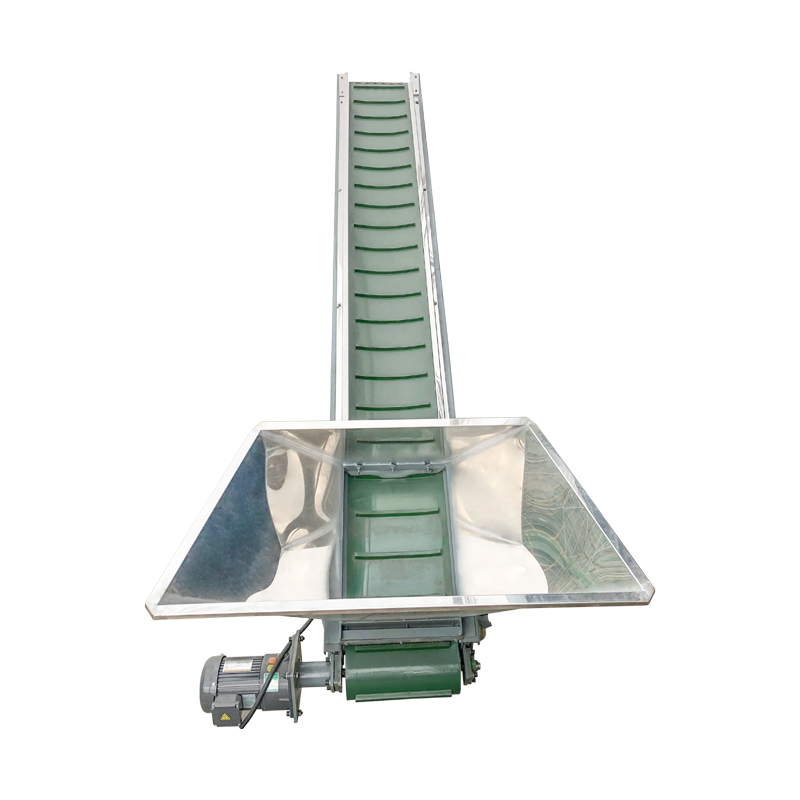

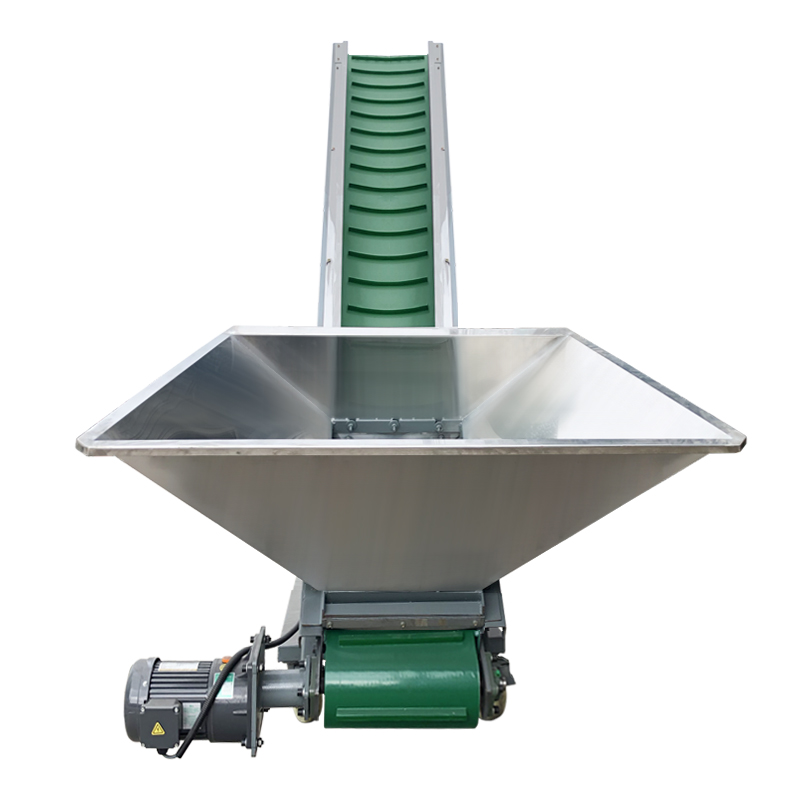

输送机


输送机是指以连续的方式沿着一定的线路从装货点到卸货点均匀输送散料或成件包装货物的机械。输送机械与起重机械相比较,其工作时输送货物是沿着一定的线路不停地输送;工作构件的装载和卸载都是在运动过程中进行的,无需停车,启动制动少;被输送的散货是以连续形式分布于承载构件上,输送的成件货物也同样按一定的次序以连续的方式移动。

Conveyor refers to in a continuous way along a certain line from the loading point to the unloading point of uniform transport of bulk materials or packaged goods machinery. Convey machinery and lifting machinery compared with the work of the transport of goods is along a certain line of non-stop transmission; Loading and unloading of working components are carried out in the process of movement, without stopping, less starting and braking; The transported bulk goods are distributed on the bearing members in a continuous form, and the transported pieces of goods also move in a continuous manner in a certain order.
输送机有如下特点。
1.
可采用较高的运动速度,且速度稳定。

2. 具有较高的生产率。

3.  在同样生产率下,自重轻,外形尺寸小,成本低,驱动功率小。

4.  传动机械的零部件负荷较低而冲击小。

5.  结构紧凑,制造和维修容易。

6.  输送货物线路固定动作单一,便于实现自动控制。

7.  工作过程中负载均匀,所消耗的功率几乎不变。

8.  只能按照一定的路线输送,每种机型只能用于一定类型的货物,一般不适于运输重量很大的单件物品,通用性差。

9.  大多数连续输送机不能自行取货,因而需要采用一定的供料设备。

Conveyors have the following characteristics.

1. High speed can be used, and the speed is stable.

2. High productivity.

3. In the same productivity, light weight, small size, low cost, small driving power.

4. The load of the parts of the transmission machinery is low and the impact is small.

5. Compact structure, easy to manufacture and maintain.

6. The transportation line is fixed and single, easy to realize automatic control.

7. The load is uniform in the working process, and the power consumed is almost constant.

8. It can only be transported along a certain route. Each type can only be used for a certain type of goods.

9. Most continuous conveyors cannot pick up goods by themselves, so they need to use a certain feeding equipment.

输送机参数

型号

4.5米(带强磁)

7米(带强磁)

8.5米(带强磁)

减速电机(kw

0.4kw

0.4kw

0.4kw

电压(v

380v

380v

380v

斜长(mm

2250mm

3500mm

4250mm

下料口高度(mm

1140mm

1900mm

2300mm

输送带(mm

360mm

360mm

360mm

输送能力(t/h

800

800

800
